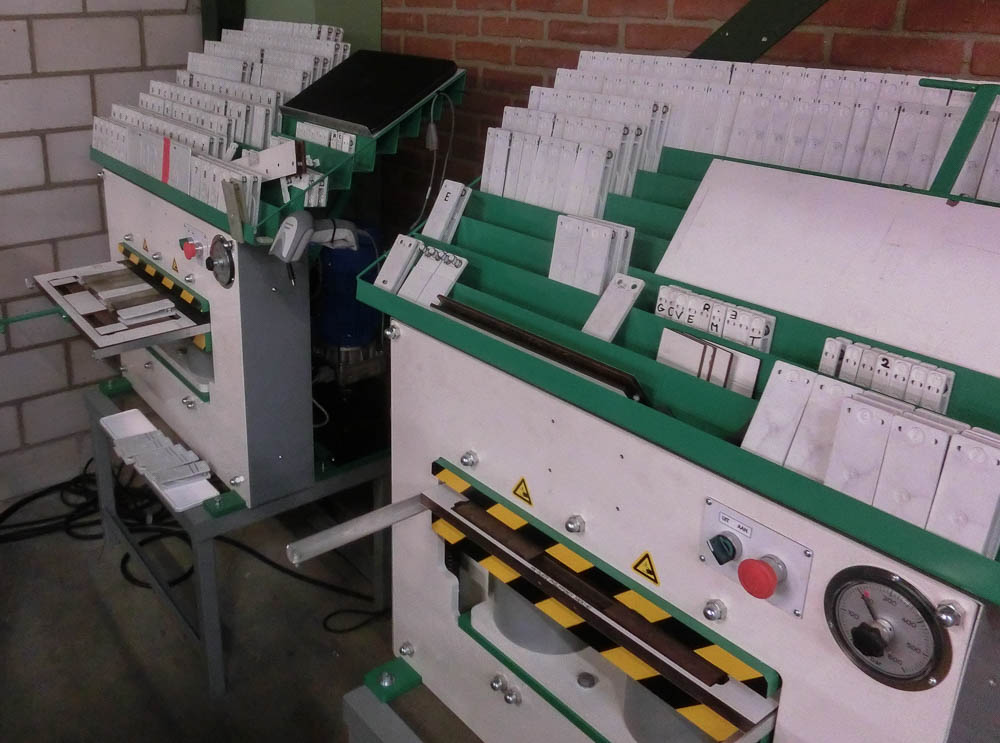

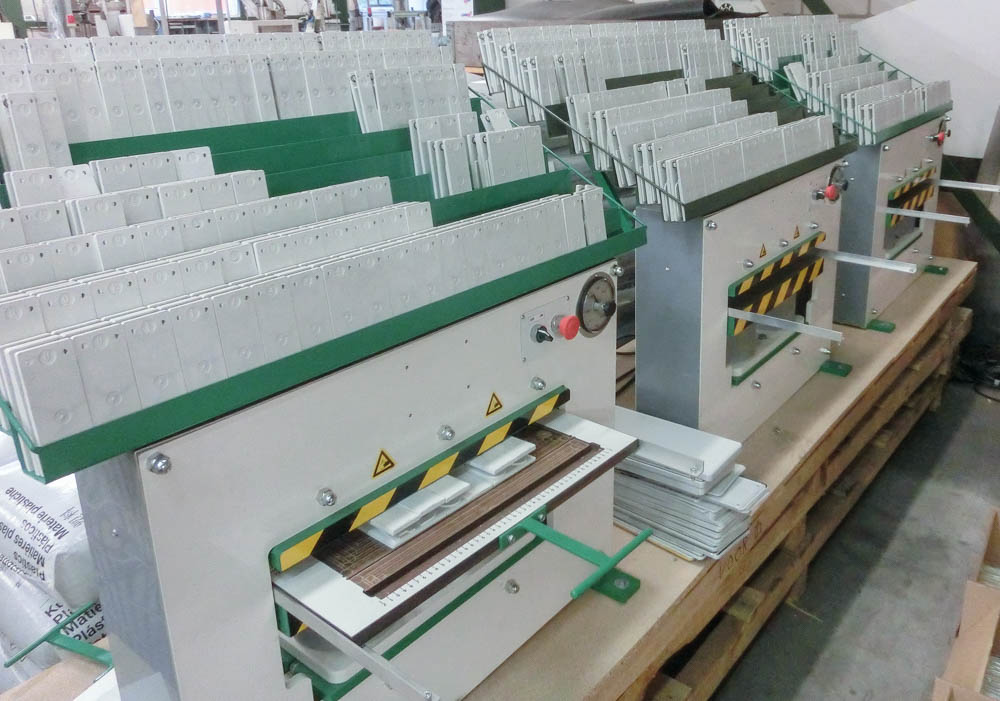

Compact Hydraulic Licence plate press

Features

• Easy to use, insert embossing frame, automatic start
• Ideally suited for Euro plates (52 x 11 cm) with border
• Pressure adjustable from 5 to 35 ton
• Light weight, normal table is usually sufficient

Benefits

• Easy maintenance, simple construction
• Own JKG development, many years of experience combined in one machine
• Safety built in, limited hub, limit switches, emergency stop

Technical specifications

Type : P-JKG02/230 or P-JKG02/400
Pressure : 5 to 35 ton (30 to 220 bar)
Dimensions (WxHxD) : 835 x 640 x 330mm
Press opening : 560 x 65mm
Press hub : max. 40mm
Effective press area : 540 x 200mm
Embossing frame width : 550mm
Weight : 280 kg (without aggregate)

Mains voltage : 220 - 240V 50 Hz (1 phase)
Power (max.) : 1,1 kW
or
Mains voltage : 380V - 400V 50 Hz (3 phase)
Power (max.) : 1,5 kW
